Signal Circuit Inspection

Check voltage
1. IG "OFF" and disconnect HO2S (B1/S2) connector.
2. IG "ON".
3. Measure voltage between signal terminal of HO2S (B1/S2) harness connector and chassis ground.
  Specification: Approx. 0.45V

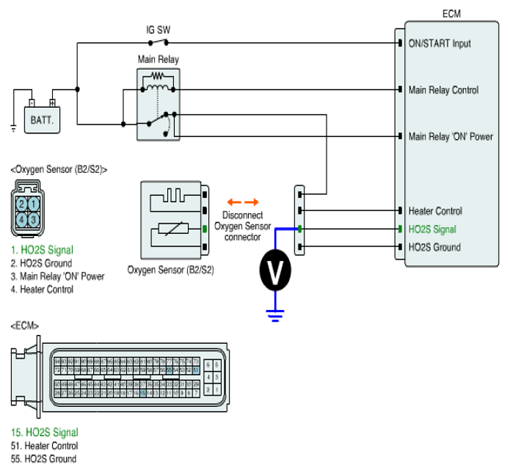

  Fig 1: Measuring Voltage Between Signal Terminal Of HO2S (B1/S2) Harness Connector And Chassis Ground
  Courtesy of HYUNDAI MOTOR CO.
4. Is the measured voltage within specification?
  YES
  - Go to "COMPONENT INSPECTION " procedure.
  NO
  - Repair short to battery in harness, and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
