Control Circuit Inspection

Check voltage
1. IG "OFF" and disconnect fuel pump relay connector.
2. IG "ON".
3. Measure voltage between fuel pump relay control terminal of Fuel pump relay harness and chassis ground.
  Specification: Approx. 3.5V

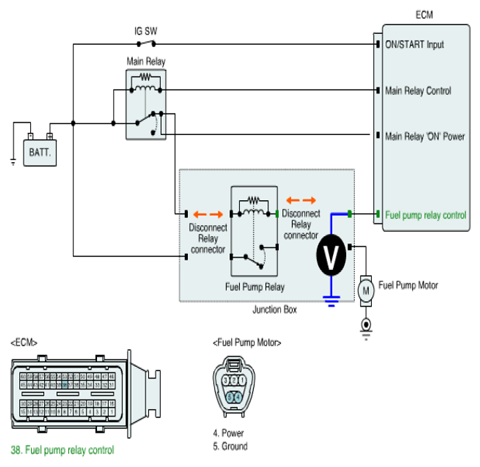

  Fig 1: Measuring Voltage Between Fuel Pump Relay Control Terminal Of Fuel Pump Relay Harness And Chassis Ground
  Courtesy of HYUNDAI MOTOR CO.
4. Is the measured voltage within specification?
  YES
  - Go to "COMPONENT INSPECTION " procedure.
  NO
  - Repair or repalce as necessary and then, go to "VERIFICATION OF VEHICLE REPAIR " procedure.
