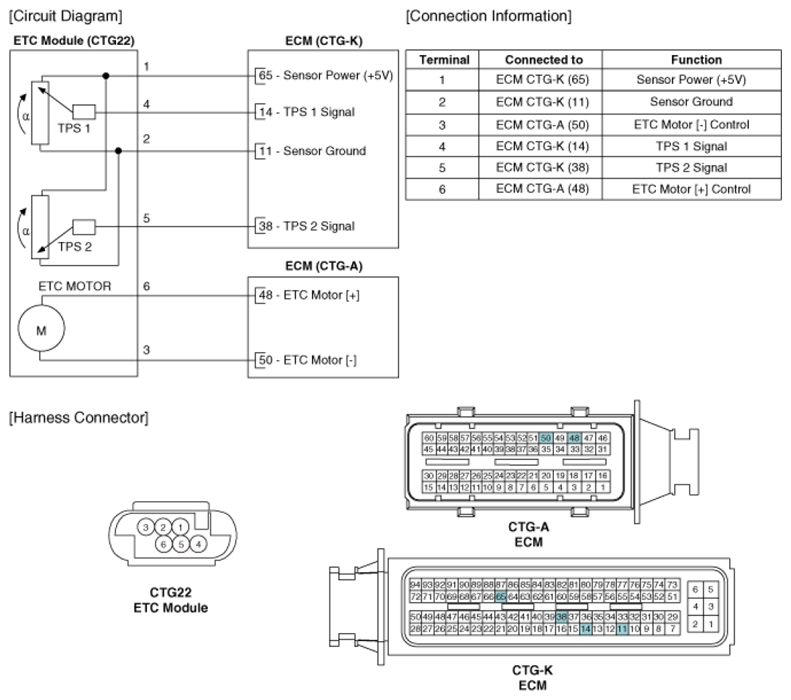

Home >> Hyundai >> 2011 >> Equus Signature >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System Components >> ETC (Electronic Throttle control) System >> Schematic Diagrams >> Circuit diagram
