Repair Procedures: Disassembly: Notes

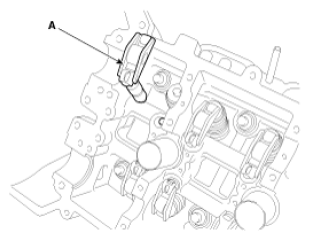

  1. Remove the roller finger follower and the hydraulic lash adjuster (HLA) assembly (A).
    Fig 1: Identifying Roller Finger Follower And Hydraulic Lash Adjuster Assembly
    G07308707Courtesy of HYUNDAI MOTOR CO.
  2. Remove the valves.
    1. Using the SST(09222-3K000, 09222-3C300), compress the valve spring and remove retainer lock.
      Fig 2: Removing Retainer Lock Using SSR (09222-3K000, 09222-3C300)
      G07308708Courtesy of HYUNDAI MOTOR CO.
    2. Remove the spring retainer.
    3. Remove the valve spring.
    4. Remove the valve.
    5. Remove the valve stem seal.
      NOTE: Do not reuse old valve stem seals.
  3. Remove the OCV filter.
