Home >> Hyundai >> 2011 >> Equus Signature >> Repair and Diagnosis >> Engine Mechanical >> Cooling System (Mechanical) >> Engine Cooling System >> Water pump >> Components and Components Location >> Components

Components and Components Location: Components

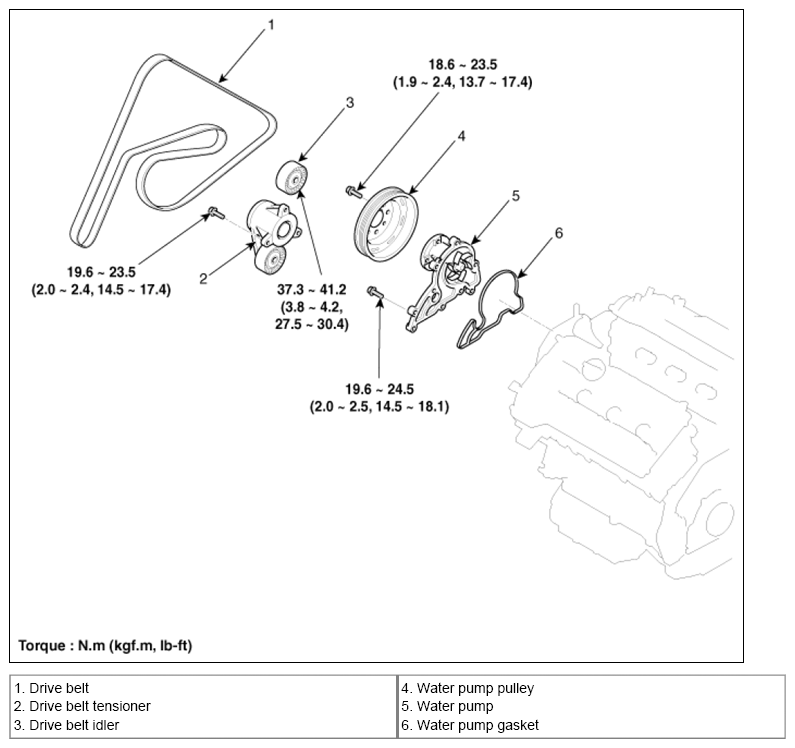

Fig 1: Exploded View Of Water Pump And Components With Torque Specifications

G07308899

Courtesy of HYUNDAI MOTOR CO.
