Service Data Analysis

  1. IG "OFF" and connect GDS.
  2. IG "ON" and select "Current Data" menu.
  3. Check the service data of Shift Lever P Position.

    Specification:  When the shift lever is positioned at P: ON, at the other range: OFF

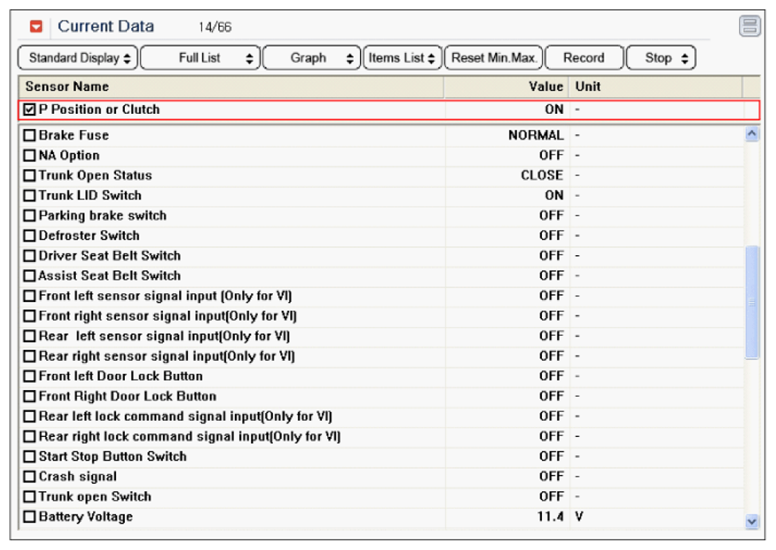

    Fig 1: Current Data - P Position Or Clutch
    G07311068Courtesy of HYUNDAI MOTOR CO.
  4. Is the service data within specifications?

    YES

    • Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO
