Components and Components Location: Components

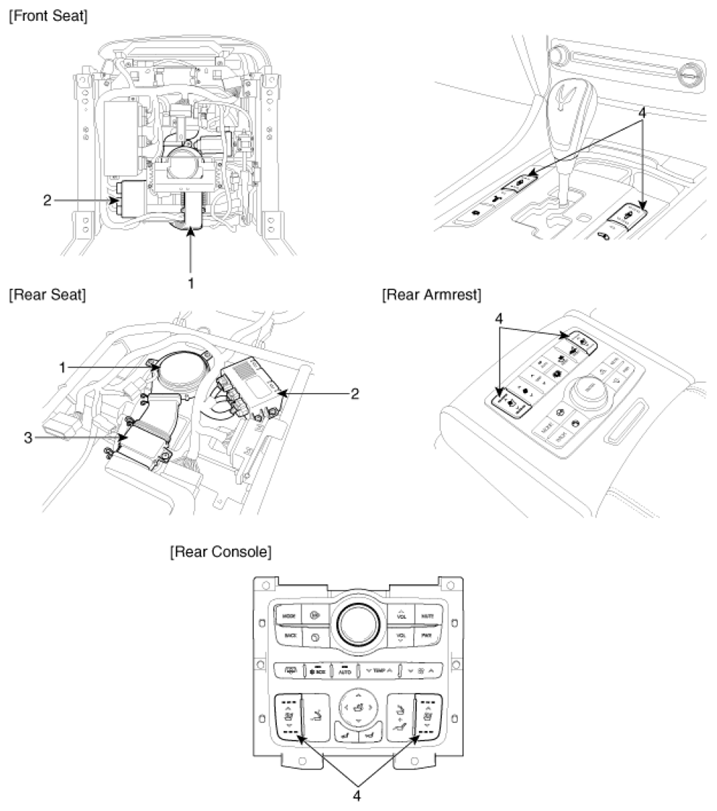

Fig 1: Identifying Climate Control Blower, ECU, TED And Climate Seat Switch

G07312828

Courtesy of HYUNDAI MOTOR CO.
