Repair Procedures: Inspection: Notes

Disconnect the negative(-) battery terminal.
Remove the seat recliner cover (A).
(Refer to "FRONT SEAT ")

Fig 1: Identifying Seat Recliner Cover
Courtesy of HYUNDAI MOTOR CO.

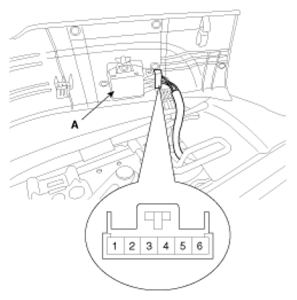

Disconnect the power seat air lumber support switch connector (A).

Fig 2: Identifying Power Seat Air Lumber Support Switch Connector
Courtesy of HYUNDAI MOTOR CO.
With the power seat air lumber support switch in each position, make sure that continuity exists between the terminal below.
If continuity is not as specified, replace the switch.

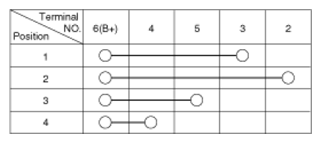

Fig 3: Power Seat Air Lumber Support Switch Connector Terminal Continuity Chart
Courtesy of HYUNDAI MOTOR CO.
1. Inflate upper, Deflate middle/lower
2. Inflate middle, Deflate upper/lower
3. Inflate lower, Deflate upper/middle
4. Deflate all
