Measurement Point

  1. Measurements should be taken at the hole center.

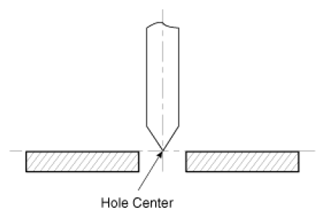

    Fig 1: Identifying Measurement Point (Hole Center)
    G07312267Courtesy of HYUNDAI MOTOR CO.
