PDM Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "PDM STATUS INFO".

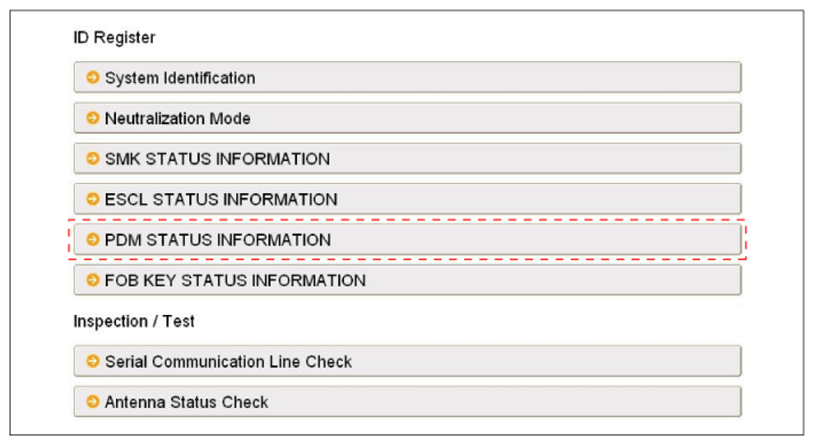

    Fig 1: Selecting PDM Status Info
    G07312636Courtesy of HYUNDAI MOTOR CO.

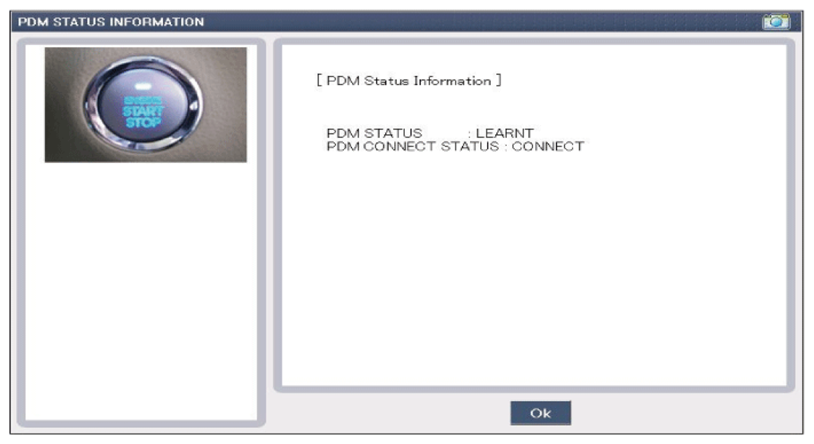

    Fig 2: Display PDM Status Information Screen
    G07312637Courtesy of HYUNDAI MOTOR CO.
