Repair Procedures: Replacement

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front door trim panel (Refer to the "FRONT DOOR ")
  3. Disconnect door module connector (A).

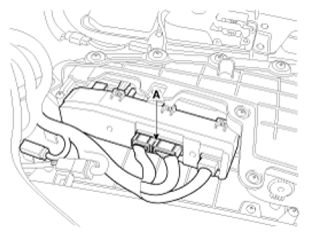

    Fig 1: Identifying Door Module Connector
    G07313330Courtesy of HYUNDAI MOTOR CO.
  4. Loosen the mounting screws from the door trim panel.

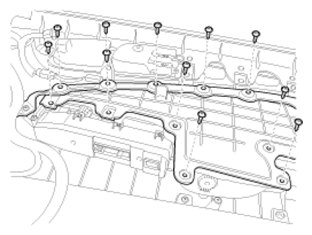

    Fig 2: Identifying Door Trim Panel Mounting Screws
    G07313331Courtesy of HYUNDAI MOTOR CO.
  5. Remove the door module (A) from the front door trim panel.
    Fig 3: Identifying Door Module
    G07313332Courtesy of HYUNDAI MOTOR CO.
