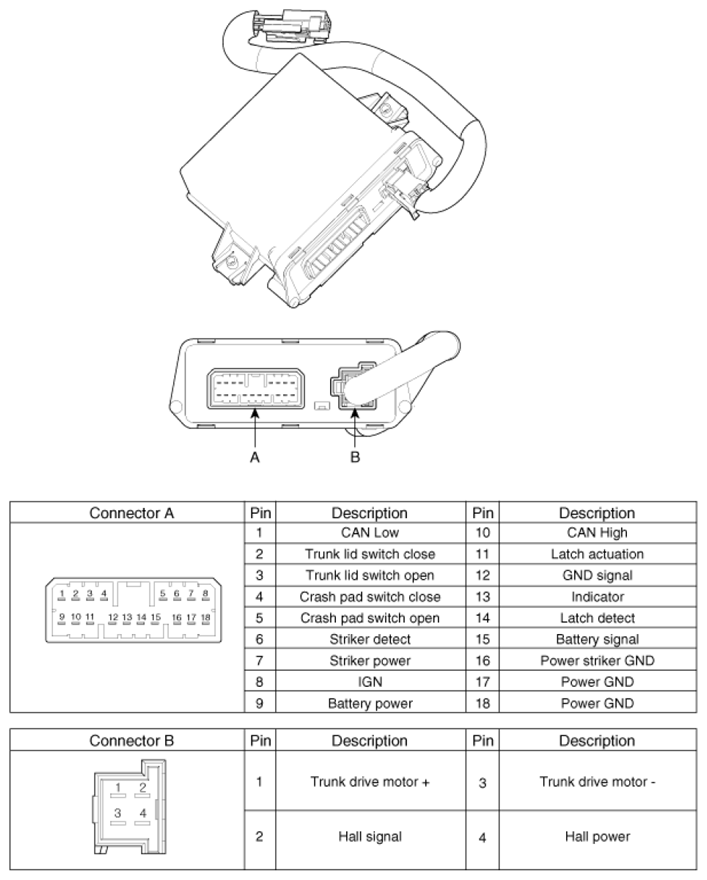

Home >> Hyundai >> 2011 >> Equus Signature >> Repair and Diagnosis (Single Page) >> Body & Frame >> Exterior Body Panels >> Power Trunk Module >> Power Trunk Module Drive Unit >> Schematic Diagrams >> Circuit Diagram
