Repair and Diagnosis
>>
Restraints
>>
Restraints Control Systems
>>
General Information (Restraints)
>>
Components (1)
Components (1)

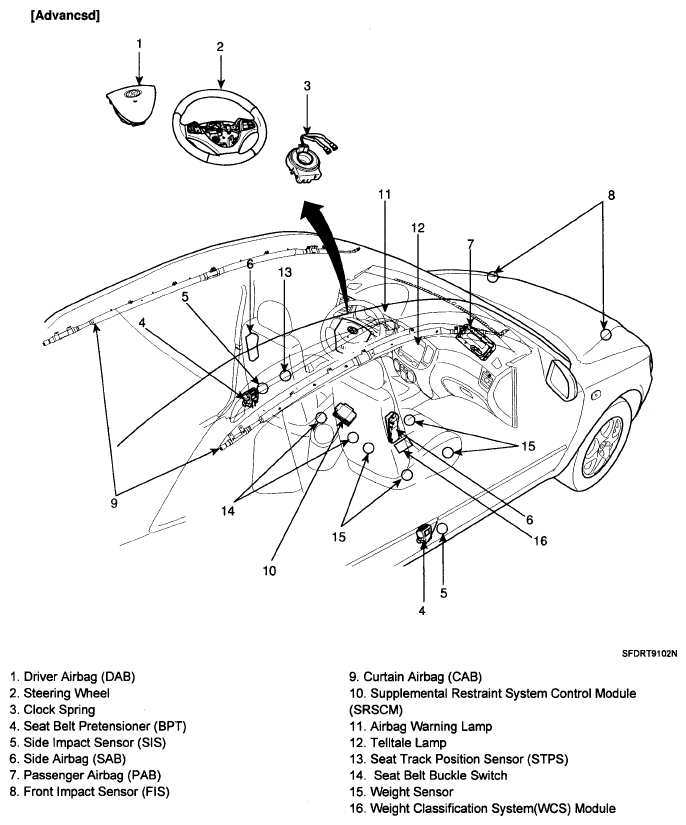

Fig 1: Identifying Restraint Components (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.

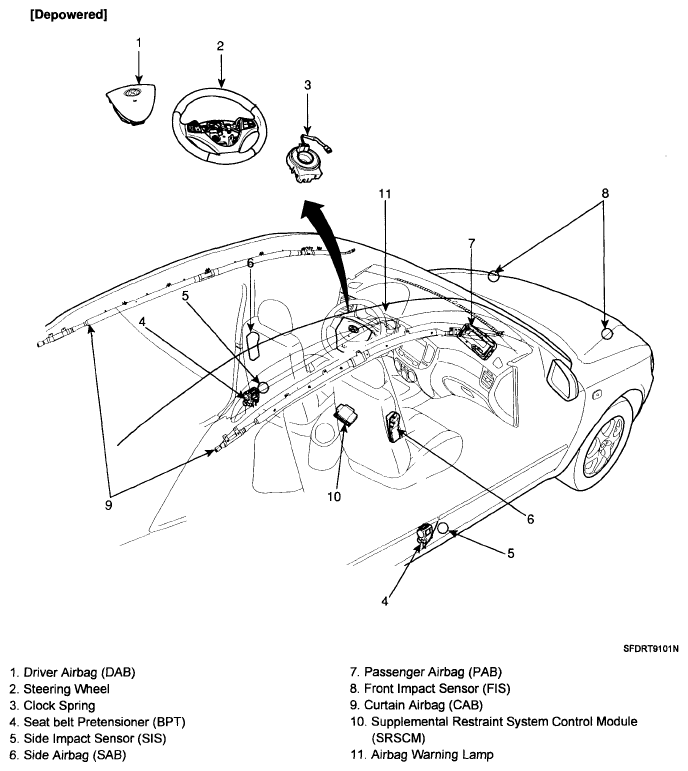

Fig 2: Identifying Restraint Components (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
