Warning Lamp Activation

As soon as the operating voltage is applied to the SRSCM ignition input, the SRSCM activates the warning lamp for a bulb check.The lamp shall turn on for 6 seconds during the initialization phase and be turned off afterward. However, in order to warn the driver, the warning lamp shall turn on for 6 seconds and off for one second then on continuously after the operating voltage is applied if any active fault exists.

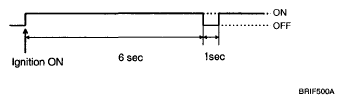

1. Active fault or historical fault counter is greater or equal to 10
   Fig 1: Warning Lamp ON/OFF Position

   Courtesy of HYUNDAI MOTOR CO.

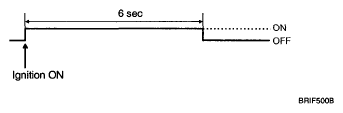

2. Normal or historical fault counter is less than 10
   Fig 2: Warning Lamp ON/OFF Position

   Courtesy of HYUNDAI MOTOR CO.
