Airbag Connector: Disconnecting

To release the lock, pull the spring-loaded sleeve (A) and the slider (B), while holding the opposite half of the connector. Pull the connector halves apart. Be sure to pull on the sleeve and not on the connector half.

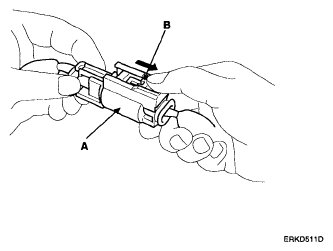

Fig 1: Precaution For Airbag Connector
G04803283Courtesy of HYUNDAI MOTOR CO.
