Airbag Connector: Connecting

Hold both connector halves and press firmly until the projection (C) of the sleeve-side connector clicks to lock.

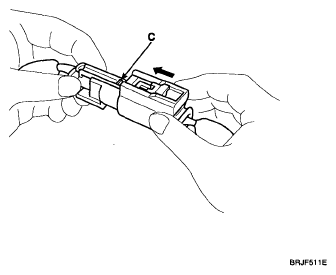

Fig 1: Precaution For Airbag Connector
G04803284Courtesy of HYUNDAI MOTOR CO.
