ESC OFF Switch: Inspection

  1. Disconnect the negative (-) battery terminal.
  2. Remove the lower side crash pad switch assembly (A) by using the trim remover tool.

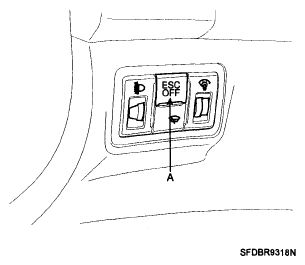

    Fig 1: Identifying Lower Side Crash Pad Switch Assembly
    G06145019Courtesy of HYUNDAI MOTOR CO.
  3. Disconnect the "ESC OFF" switch connector (A).

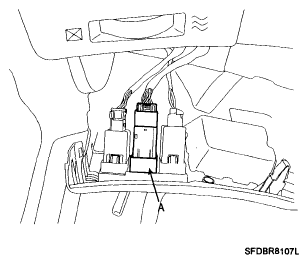

    Fig 2: Identifying ESC OFF Switch Connector
    G06145020Courtesy of HYUNDAI MOTOR CO.
  4. Check the continuity between the switch terminals as the ESC OFF switch is engaged. (Refer to circuit diagram )
