Antenna coil

The antenna coil (A) has the following functions.

• The antenna coil supplies energy to the transponder.
• The antenna coil receives signal from the transponder.
• The antenna coil sends transponder signal to the SMARTRA.

  It is located directly in front of the steering handle lock.

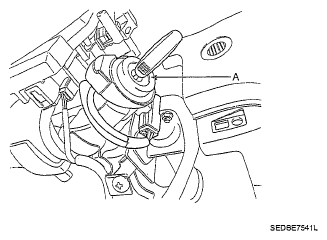

Fig 1: Identifying Antenna Coil

Courtesy of HYUNDAI MOTOR CO.
