Repair Procedures: Removal

Pressure Side Impact Sensor

CAUTION:

Removal of the airbag must be performed according to the precautions/procedures described previously.
Before disconnecting the side impact sensor connector(s), disconnect the side airbag connector(s).
Do not turn the ignition switch ON and do not connect the battery cable while replacing the side impact sensor.

Disconnect the battery negative cable, and wait for at least three minutes before beginning work.
Remove the front door trim.
(Refer to the "FRONT DOOR ")
Disconnect the pressure side impact sensor connector (A) and remove the pressure side impact sensor mounting screws (B).

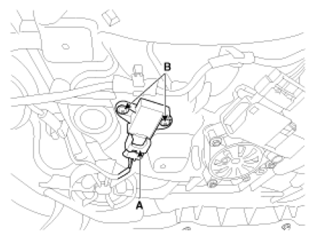

Fig 1: Identifying Pressure Side Impact Sensor Connector
Courtesy of HYUNDAI MOTOR CO.

Side Impact Sensor

Disconnect the battery negative cable and wait for at least three minutes before beginning work.
Remove the door scuff trim.
(Refer to the "INTERIOR TRIM ")
Remove the center pillar trim.
(Refer to the "INTERIOR TRIM ")
Disconnect the side impact sensor connector (B).

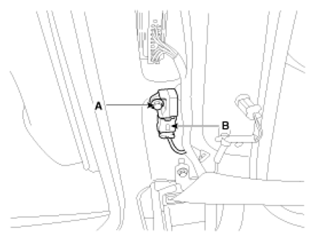

Fig 2: Identifying Side Impact Sensor Connector
Courtesy of HYUNDAI MOTOR CO.
Loosen the side impact sensor mounting bolt (A) and remove the side impact sensor.
