Components and Components Location: Components

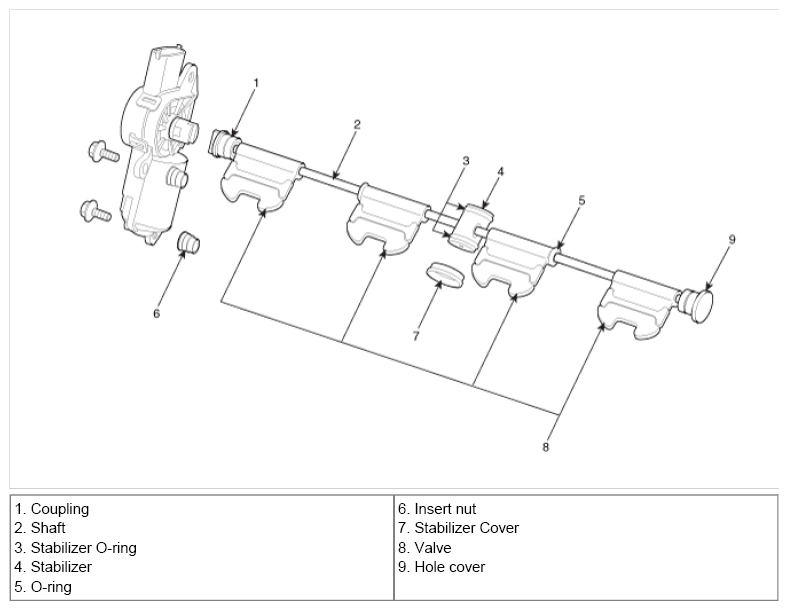

Fig 1: Identifying Variable Charge Motion Actuator Components

G07264128

Courtesy of HYUNDAI MOTOR CO.
