Circuit Diagram: (A/T)

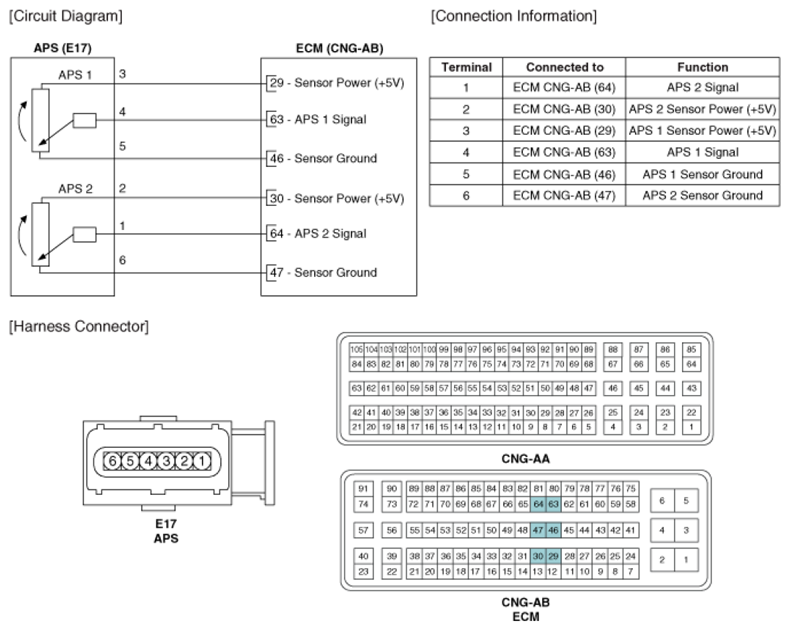

Fig 1: Accelerator Position Sensor (A/T) - Circuit Diagram

G07264094

Courtesy of HYUNDAI MOTOR CO.
