Components And Components Location: Components

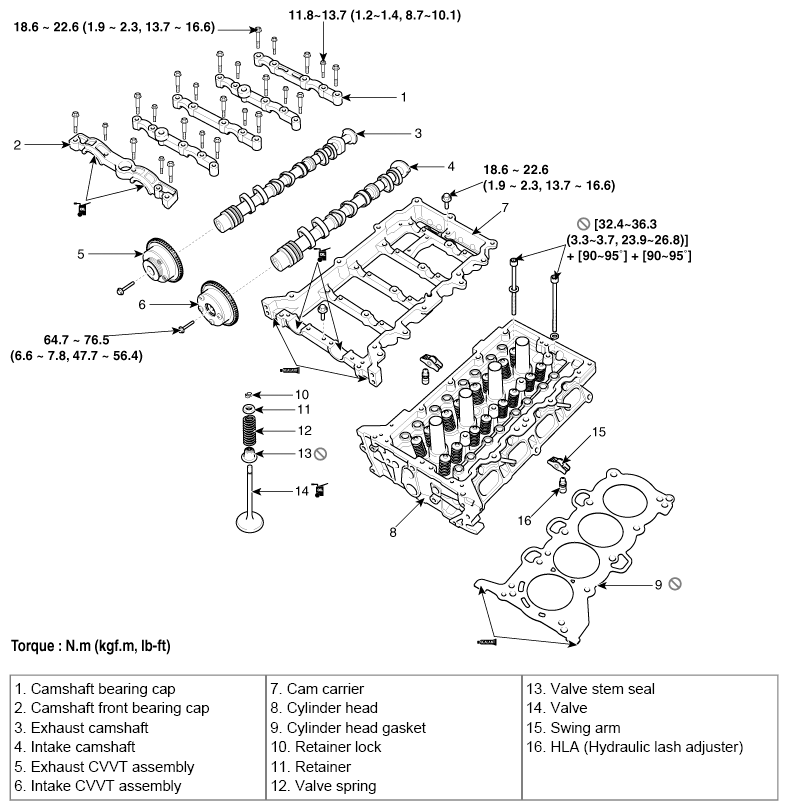

Fig 1: Cylinder Head Exploded View With Torque Specifications

G07263670

Courtesy of HYUNDAI MOTOR CO.
