Home >> Hyundai >> 2011 >> Elantra Limited >> Repair and Diagnosis >> Engine Mechanical >> Auxiliary Emission Control Systems >> General Information (Emission Control System) >> Components and Components Location >> Components Location

Components Location

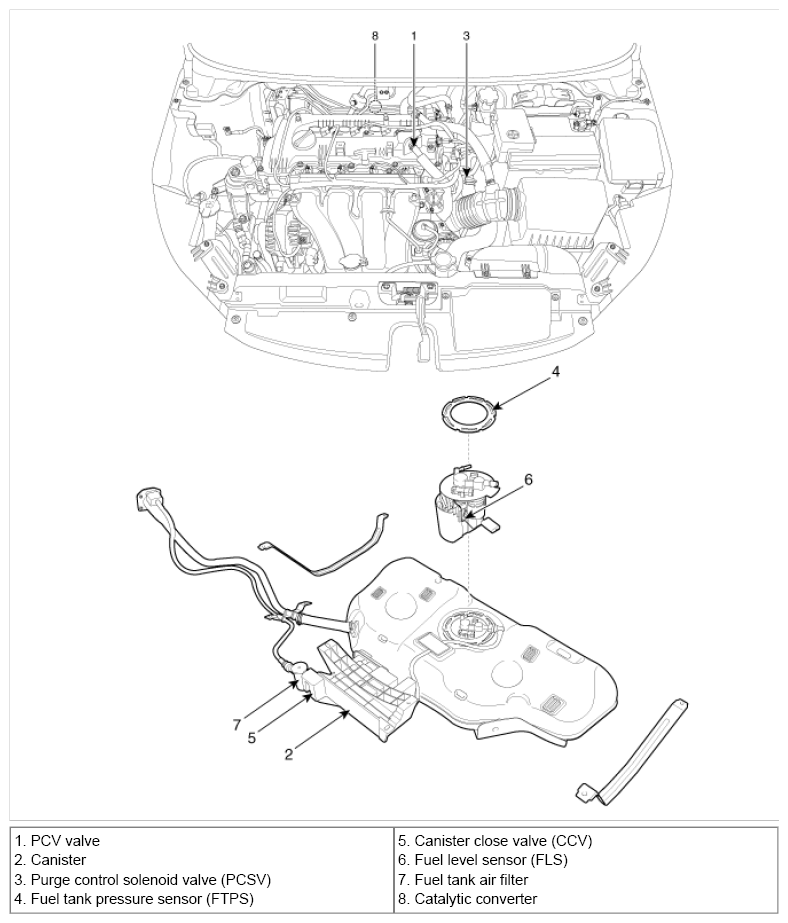

Fig 1: Identifying Emission Control System Components (1 Of 2)
G07263970Courtesy of HYUNDAI MOTOR CO.

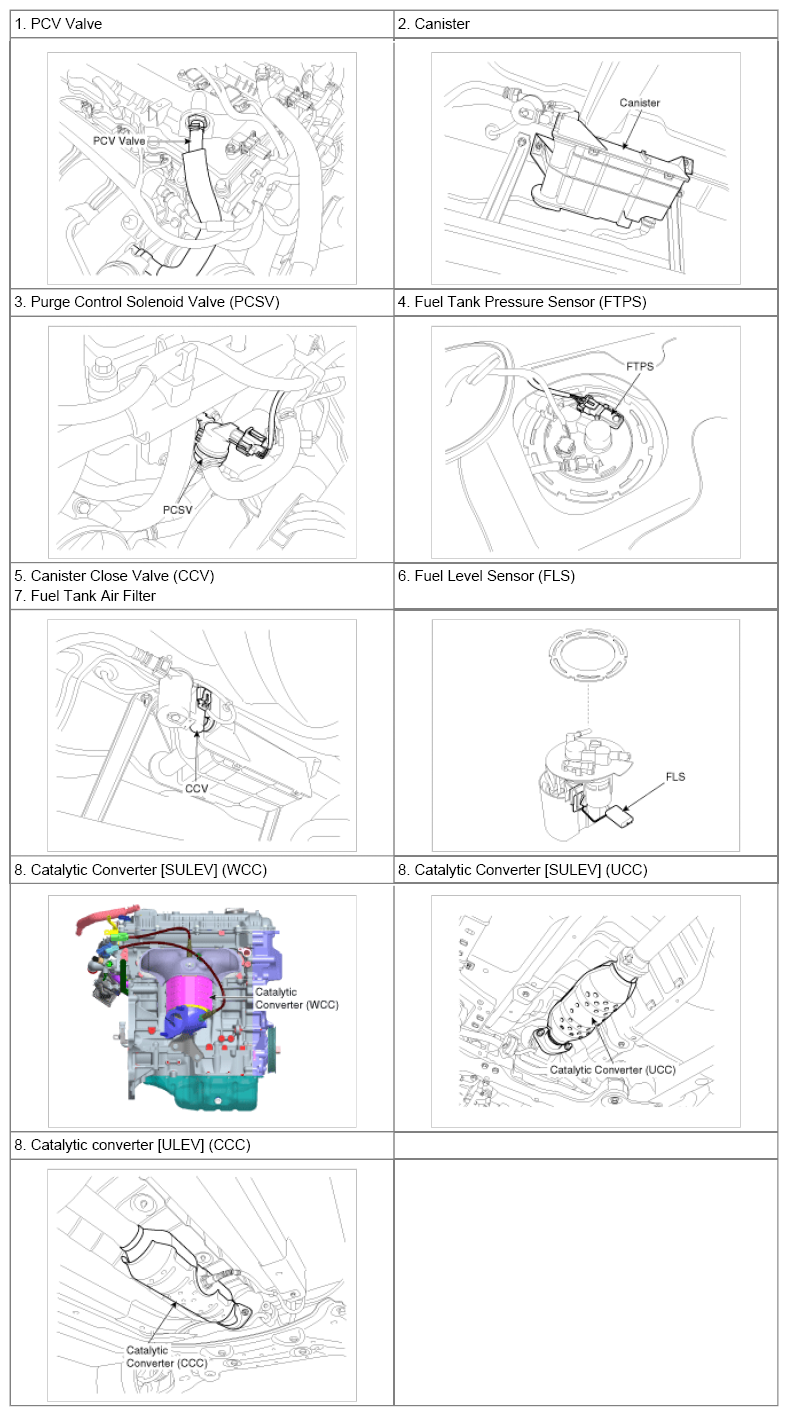

Fig 2: Identifying Emission Control System Components (2 Of 2)
G07263971Courtesy of HYUNDAI MOTOR CO.
