Signal Waveform & Data

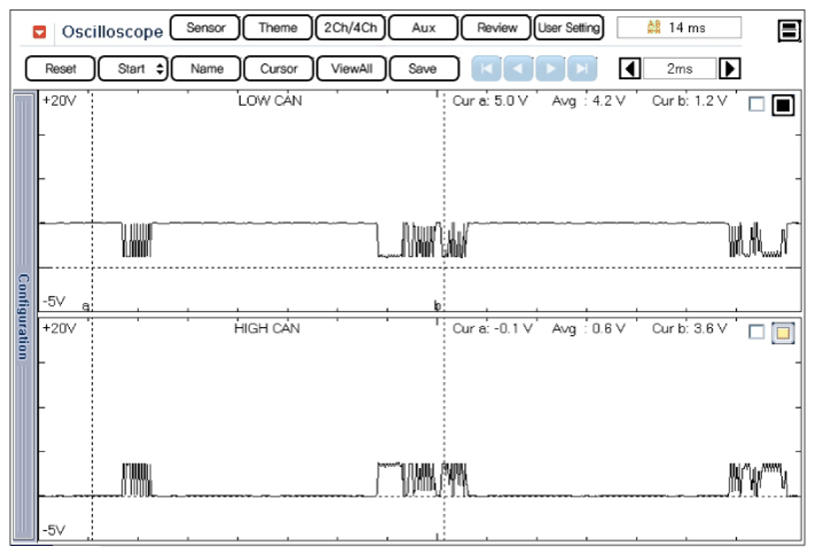

Fig 1: Display Screen - CAN Low/High Signal Waveform

G07257182

Courtesy of HYUNDAI MOTOR CO.

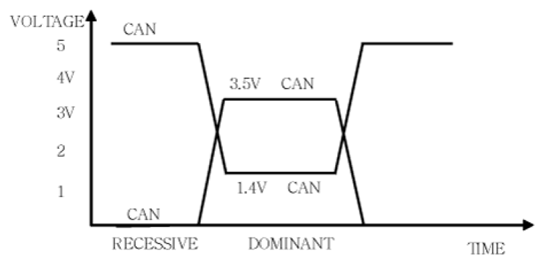

Fig 2: CAN BUS Voltage Level (Low Speed CAN) Graph

G07257183

Courtesy of HYUNDAI MOTOR CO.
