Transmitter Code Registration (Using GDS)

Connect the DLC cable of GDS to the data link connector (16 pins) in driver side crash pad lower panel, turn the power on GDS.

Fig 1: DLC Connector Location
Courtesy of HYUNDAI MOTOR CO.
Select the vehicle model and then do "CODE SAVING"

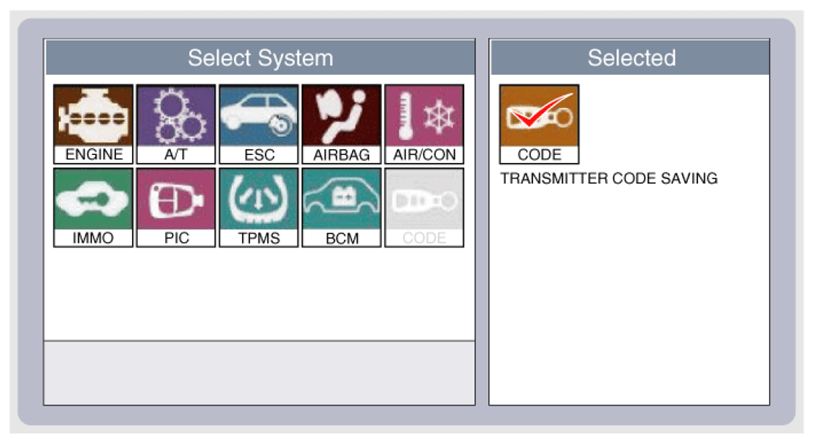

Fig 2: Scantool Display - Select System
Courtesy of HYUNDAI MOTOR CO.
After selecting "CODE SAVING" menu, button "ENTER" key, then the screen will be shown as in illustration below.

Fig 3: Scantool Display - Code Saving
Courtesy of HYUNDAI MOTOR CO.
After removing the ignition key from key cylinder, push "ENTER" key to proceed to the next mode for code saving. Follow steps 1 to 4 and then code saving is completed.

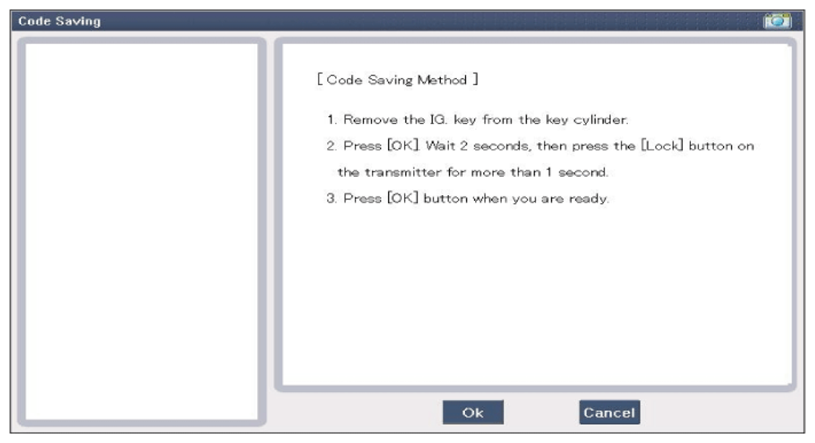

Fig 4: Scantool Display - Code Saving
Courtesy of HYUNDAI MOTOR CO.

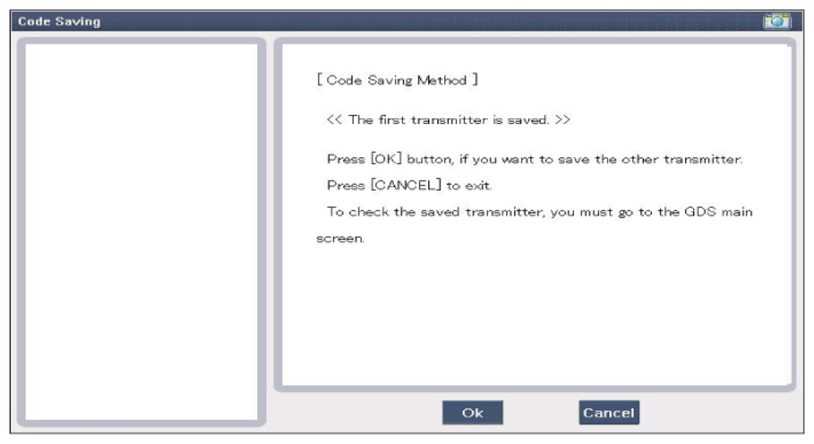

Fig 5: Scantool Display - Code Saving
Courtesy of HYUNDAI MOTOR CO.

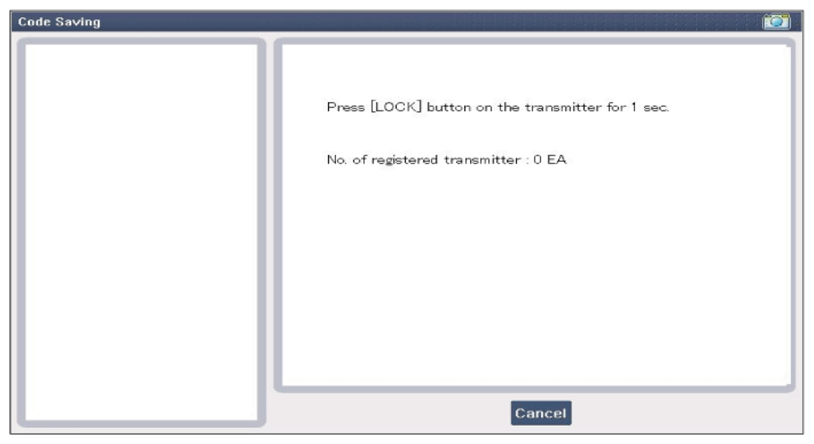

Fig 6: Scantool Display - Code Saving
Courtesy of HYUNDAI MOTOR CO.

Fig 7: Scantool Display - Code Saving
Courtesy of HYUNDAI MOTOR CO.

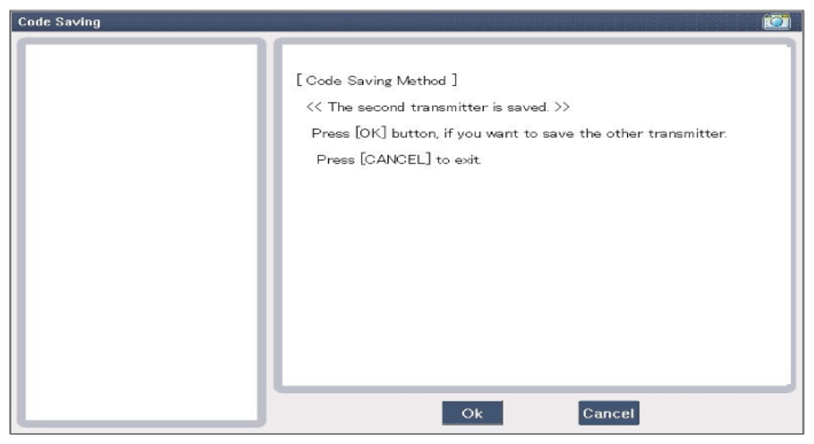

Fig 8: Scantool Display - Code Saving
Courtesy of HYUNDAI MOTOR CO.

Fig 9: Scantool Display - Code Saving
Courtesy of HYUNDAI MOTOR CO.

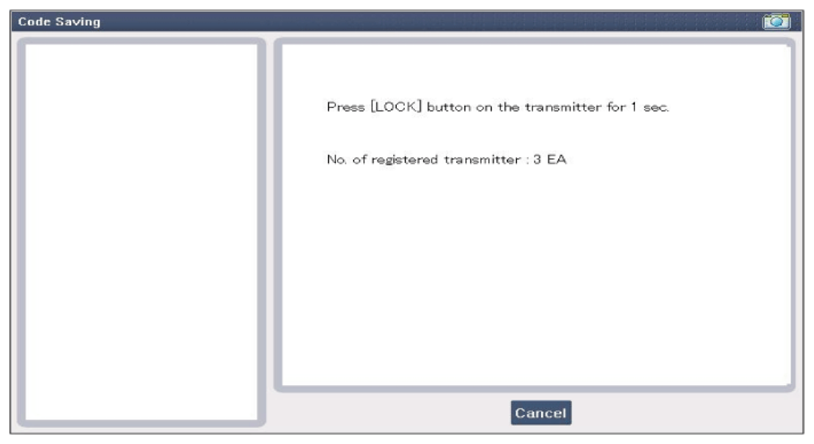

Fig 10: Scantool Display - Code Saving
Courtesy of HYUNDAI MOTOR CO.

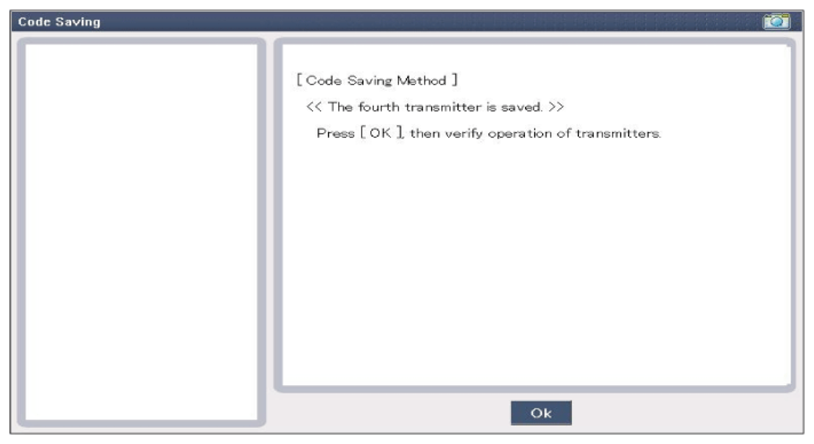

Fig 11: Scantool Display - Code Saving
Courtesy of HYUNDAI MOTOR CO.

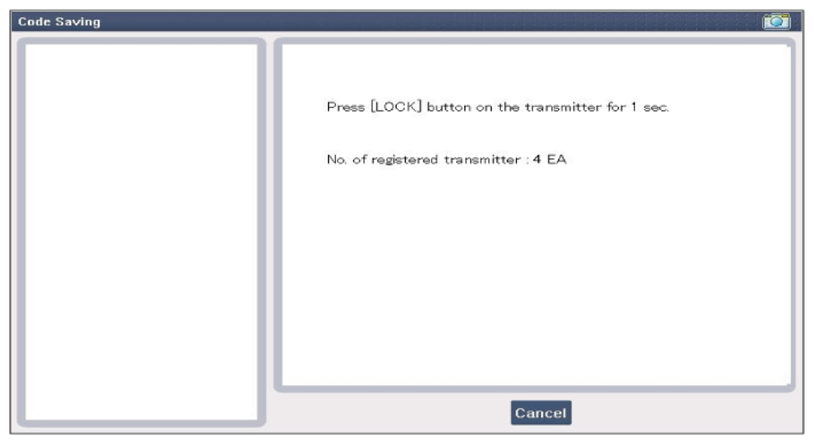

Fig 12: Scantool Display - Code Saving
Courtesy of HYUNDAI MOTOR CO.
