Circuit Diagram: (A/T)

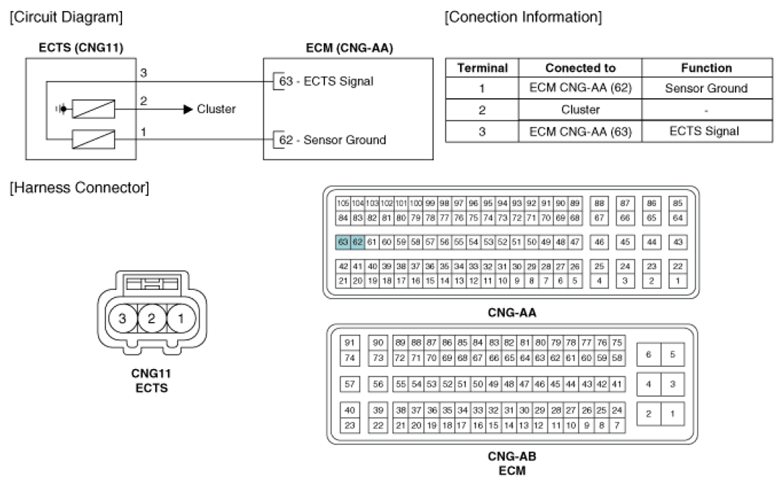

Fig 1: Engine Coolant Temperature Sensor (A/T) - Circuit Diagram

G07264061

Courtesy of HYUNDAI MOTOR CO.
