Circuit Diagram: (A/T)

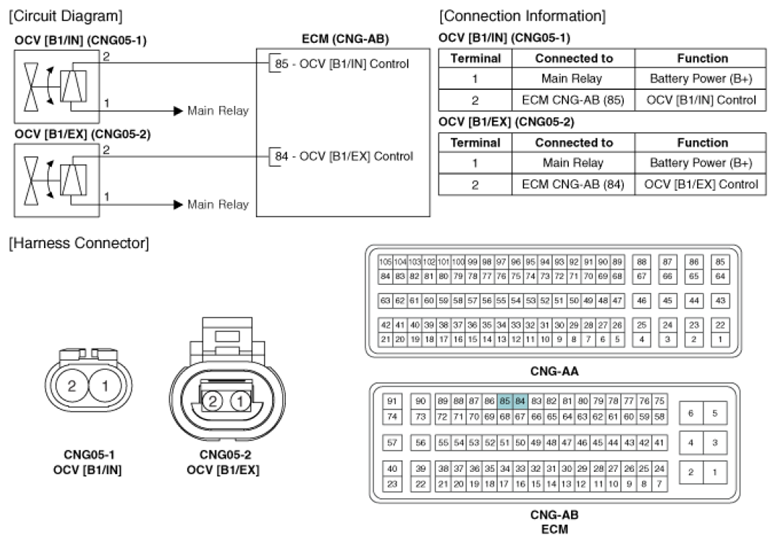

Fig 1: CVVT Oil Control Valve (A/T) - Circuit Diagram

G07264112

Courtesy of HYUNDAI MOTOR CO.
