Repair procedures: Removal

  1. Remove the under covers. (Refer to ENGINE AND TRANSAXLE ASSEMBLY )
  2. Drain engine oil.
  3. Remove the oil pan (A).
    1. Unfasten the bolts.
    2. Insert the blade of SST (09215-3C000) between the lower crankcase and the oil pan. Separate the applied sealer and remove the oil pan.

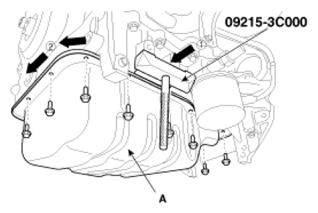

      Fig 1: Identifying Oil Pan
      G07263849Courtesy of HYUNDAI MOTOR CO.
    NOTE: Loosen one oil pan bolt near each corner of the oil pan leaving the bolts held in by about 2 threads. Then remove all other pan bolts.
    NOTE:
    • Insert the SST between the oil pan and the lower crankcase by tapping it with a plastic hammer in the direction of arrow
    • After tapping the SST with a plastic hammer along the direction of arrow around more than 2/3 edge of the oil pan, remove it from the lower crankcase.
    • Do not turn over the SST abruptly without tapping. It is result in damage of the SST.
    • Be careful not to damage the contact surfaces of the lower crankcase and the oil pan.
  4. Remove the oil screen (A) with the gasket (B).
    Fig 2: Identifying Oil Screen
    G07263850Courtesy of HYUNDAI MOTOR CO.
