Home >> Hyundai >> 2011 >> Elantra GLS, Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Engine And Transaxle Assembly Removal & Installation >> Engine Mounting >> Components and Components Location >> Components

Components and Components Location: Components

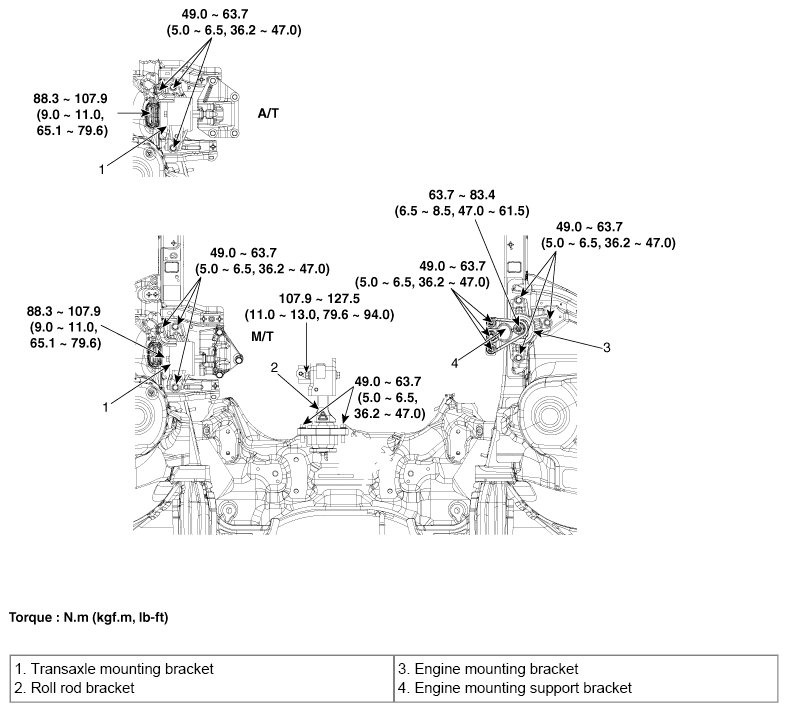

Fig 1: Engine Mounting Replacement Components With Torque Specifications

G07263545

Courtesy of HYUNDAI MOTOR CO.
