Components and Components Location: Components: Notes

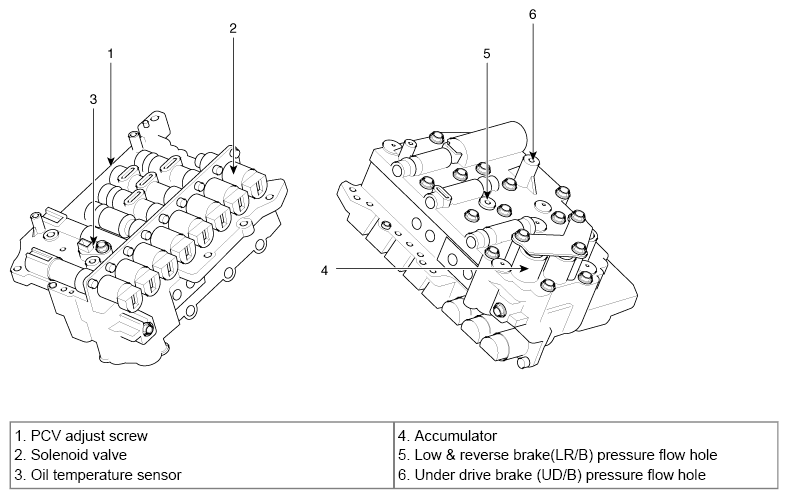

Fig 1: Identifying Valve Body Components

G07264253

Courtesy of HYUNDAI MOTOR CO.
