Components and Components Location: Components: Notes

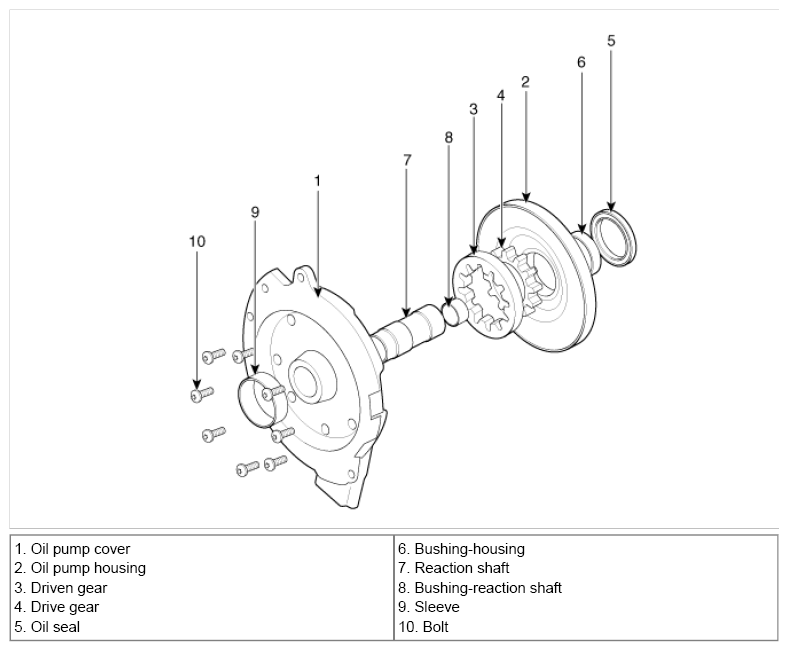

Fig 1: Identifying Oil Pump Components

G07264246

Courtesy of HYUNDAI MOTOR CO.
