Elantra GLS, Automatic
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Automatic Transaxle Control System
>>
Specifications
>>
Schematic Diagrams
>>
Circuit Diagram
Circuit Diagram
Fig 1: Input Speed Sensor - Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.

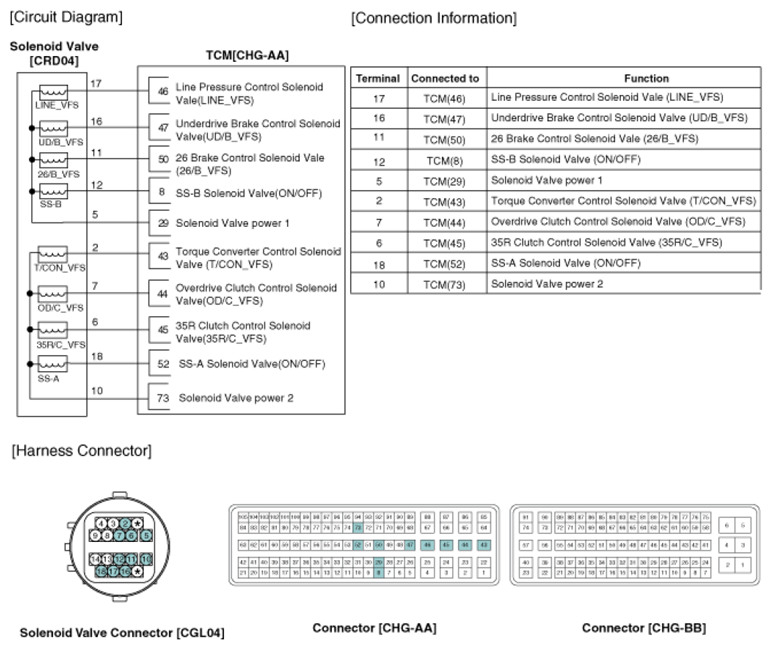

Fig 1: Brake Control Solenoid Valve - Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
