Repair Procedures: Installation
CAUTION:
- Do not turn the ignition switch ON and do not contact the battery cable while replacing the front impact sensor.
- Install the new front impact sensor.
- Tighten the front impact sensor mounting nut.
Tightening torque:
7.8 ~ 9.8 N.m (0.8 ~ 1.0 kgf.m, 5.8 ~ 7.2 lb-ft)
- Connect the front impact sensor connector.

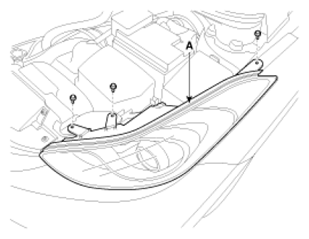

- Install the head lamp assembly (A). (Refer to the Body Electrical group - "Head lamps")
- Reconnect the battery negative cable.
- After installing the Front Impact Sensor, confirm proper system operation:
- Turn the ignition switch ON; the SRS indicator light should be turned on for about six seconds and then go off.
