On-vehicle Inspection: Notes

Spark Test

1. Disconnect the injector connectors (A).
   Fig 1: Identifying Injector Connectors

   Courtesy of HYUNDAI MOTOR CO.
2. Disconnect the ignition coil connectors (A).
   Fig 2: Identifying Ignition Coil Connectors

   Courtesy of HYUNDAI MOTOR CO.
   NOTE: When removing the ignition coil connector, pull the lock pin (A) and push the clip (B).
   Fig 3: Identifying Lock Pin

   Courtesy of HYUNDAI MOTOR CO.
3. Remove the ignition coils (A).
   Fig 4: Identifying Ignition Coils

   Courtesy of HYUNDAI MOTOR CO.
4. Using a spark plug socket, remove the spark plugs (A).
   Fig 5: Identifying Spark Plugs

   Courtesy of HYUNDAI MOTOR CO.
   CAUTION: Be careful that no contaminates enter through the spark plug holes.
5. Install the spark plug to the ignition coil.
6. Ground the spark plug to the engine.

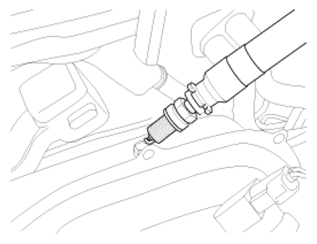

   Fig 6: Grounding Spark Plug To Engine

   Courtesy of HYUNDAI MOTOR CO.
7. Check if spark occurs while engine is being cranked.
   NOTE: To prevent fuel being injected from injectors while the engine is being cranked, disconnect the injector connectors.

   Crank the engine for no more than 5 ~ 10 seconds.

8. Inspect all the spark plugs.

   Tightening torque:

   14.7 ~ 24.5 N.m (1.5 ~ 2.5 kgf.m, 10.8 ~ 18.1 lb-ft)

9. Using a spark plug socket, install the spark plugs.
10. Install the ignition coils.

    Tightening torque:

    9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

    NOTE: When inserting ignition coil into the cylinder head cover for spark plug to be inserting ignition coil, the sealing cap of ignition coil must be mated totally with inner side of cylinder head.
11. Reconnect the ignition coil connectors.
12. Reconnect the injector connectors.

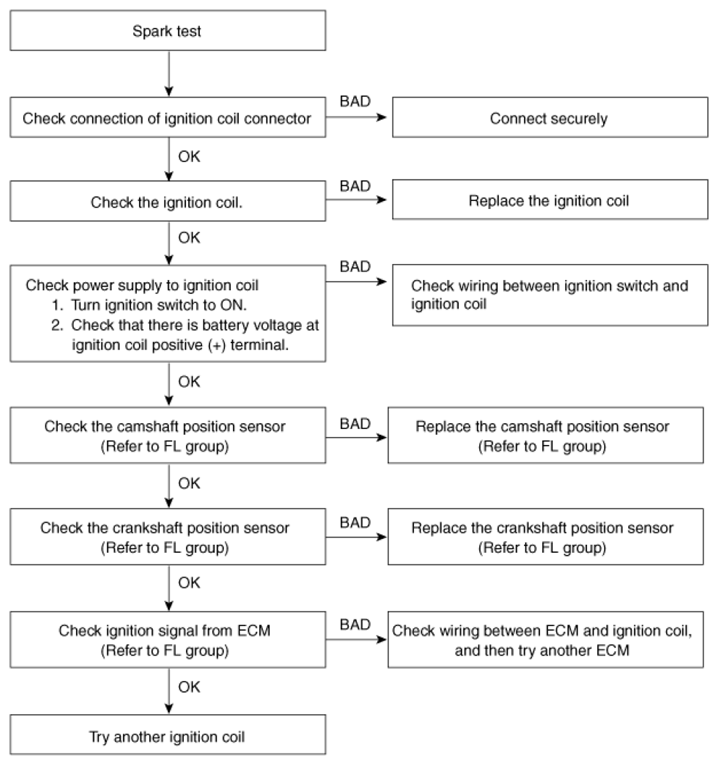

    Fig 7: Spark Test Flow Chart

    Courtesy of HYUNDAI MOTOR CO.
