Repair Procedures: Removal

  1. Release the residual pressure in fuel line (Refer to "RELEASE RESIDUAL PRESSURE IN FUEL LINE " ).
  2. Remove the rear seat cushion (Refer to "SEAT " ).
  3. Remove the fuel pump service cover (A).

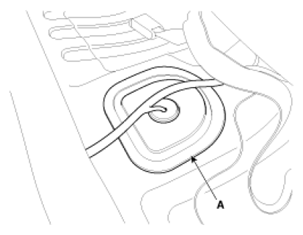

    Fig 1: Identifying Fuel Pump Service Cover
    G07264137Courtesy of HYUNDAI MOTOR CO.
  4. Disconnect the fuel pump connector (A) and the fuel tank pressure sensor connector (B).
  5. Disconnect the fuel feed tube quick connector (C).

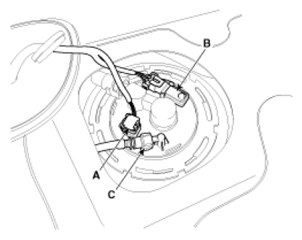

    Fig 2: Identifying Fuel Pump Connector
    G07264138Courtesy of HYUNDAI MOTOR CO.
  6. Remove the rear - LH wheel & tire.
  7. Lift the vehicle and support the fuel tank with a jack.
  8. Remove the center muffler assembly (Refer to "INTAKE AND EXHAUST SYSTEM " ).
  9. Disconnect the fuel filler hose (A).

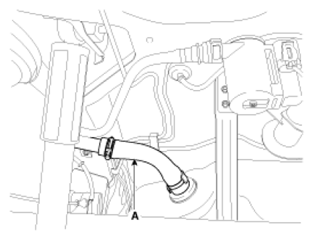

    Fig 3: Identifying Fuel Filler Hose
    G07264139Courtesy of HYUNDAI MOTOR CO.
  10. Remove the under cover (A) and the parking brake line (B).

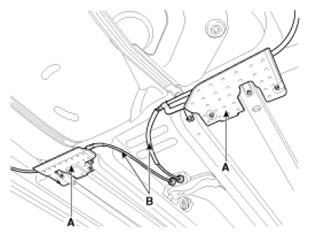

    Fig 4: Identifying Under Cover
    G07264140Courtesy of HYUNDAI MOTOR CO.
  11. Disconnect the vapor tube quick-connector (A).
  12. Remove the fuel tank from the vehicle after removing the fuel tank band (B).

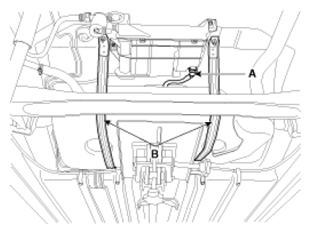

    Fig 5: Identifying Vapor Tube Quick-Connector
    G07264141Courtesy of HYUNDAI MOTOR CO.
    NOTE: When removing the fuel tank, the fuel tank must be tilted because of interfering with coupling.
