Repair Procedures: Removal

  1. Release the residual pressure in fuel line (Refer to "RELEASE RESIDUAL PRESSURE IN FUEL LINE " ).
  2. Remove the rear seat (Refer to "SEAT " ).
  3. Remove the fuel pump service cover (A).

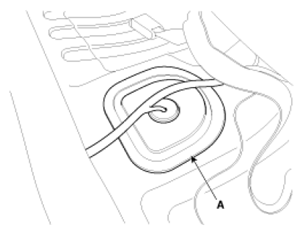

    Fig 1: Identifying Fuel Pump Service Cover
    G07264142Courtesy of HYUNDAI MOTOR CO.
  4. Disconnect the fuel pump connector (A) and the fuel tank pressure sensor connector (B).
  5. Disconnect the fuel feed tube quick connector (C) and the vapor tube quick-connector (D).
  6. Remove locking ring (E) by using the service tool.

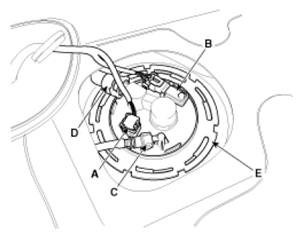

    Fig 2: Identifying Fuel Pump Connector
    G07264143Courtesy of HYUNDAI MOTOR CO.
  7. Remove the fuel pump from the fuel tank.
    Fig 3: Identifying Fuel Pump
    G07264144Courtesy of HYUNDAI MOTOR CO.
