Repair Procedures: Removal

  1. Remove the rear-LH wheel, tire, and the inner wheel house.
  2. Disconnect the fuel filler hose (A) and the ventilation hose quick-connector (B).

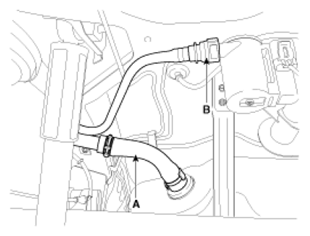

    Fig 1: Identifying Fuel Filler Hose
    G07264149Courtesy of HYUNDAI MOTOR CO.
  3. Open the fuel filler door and unfasten the filler-neck assembly mounting screw (A).

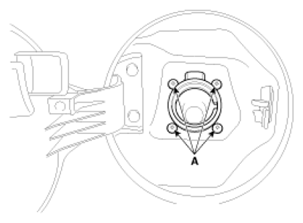

    Fig 2: Identifying Filler-Neck Assembly Mounting Screw
    G07264150Courtesy of HYUNDAI MOTOR CO.
  4. Remove the filler-neck assembly from the vehicle after removing the bracket mounting bolts (A).

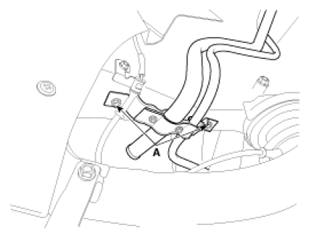

    Fig 3: Identifying Bracket Mounting Bolts
    G07264151Courtesy of HYUNDAI MOTOR CO.
