Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the negative (-) battery cable.

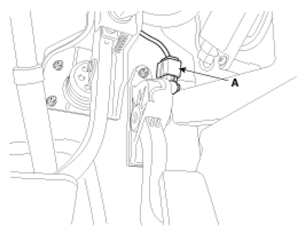

  2. Disconnect the accelerator position sensor connector (A).
    Fig 1: Identifying Accelerator Position Sensor Connector
    G07264152Courtesy of HYUNDAI MOTOR CO.
  3. Remove the installation bolt (B), the nuts (C) and then remove the accelerator pedal module.
    Fig 2: Identifying Installation Bolt
    G07264153Courtesy of HYUNDAI MOTOR CO.
    Fig 3: Identifying Accelerator Pedal Module
    G07264154Courtesy of HYUNDAI MOTOR CO.
