Circuit Diagram: (A/T)

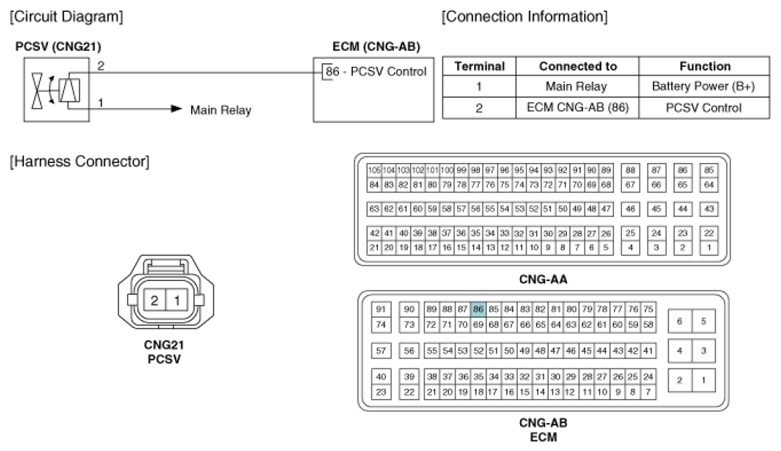

Fig 1: Purge Control Solenoid Valve (A/T) - Circuit Diagram

G07264108

Courtesy of HYUNDAI MOTOR CO.
