Circuit Diagram: (M/T)

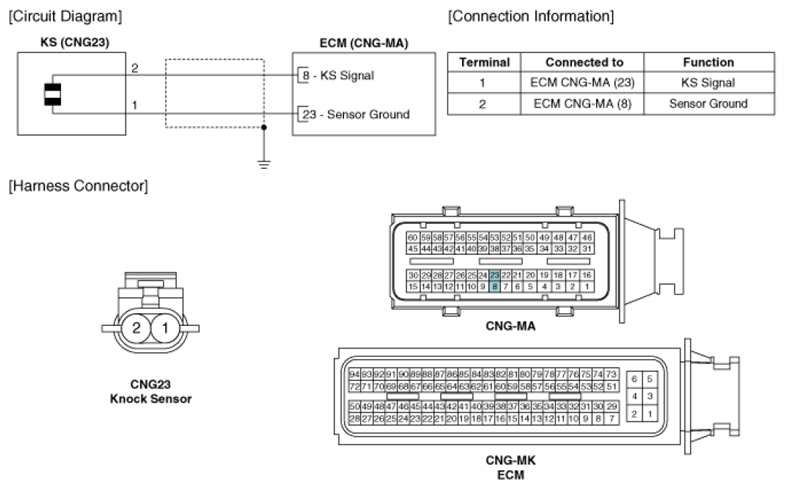

Fig 1: Knock Sensor (M/T) - Circuit Diagram

G07264076

Courtesy of HYUNDAI MOTOR CO.
