Circuit Diagram: (A/T)

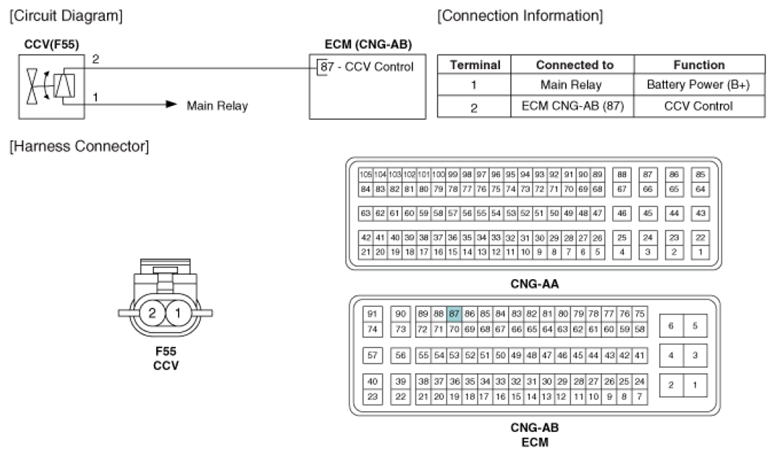

Fig 1: Canister Close Valve (A/T) - Circuit Diagram

G07264122

Courtesy of HYUNDAI MOTOR CO.
