Home >> Hyundai >> 2011 >> Elantra GLS, Automatic >> Repair and Diagnosis >> Drivelines & Axles >> Wheel Hubs >> Front Axle Assembly >> Front Hub-Knuckle >> Components and Components Location >> Components

Components and Components Location: Components

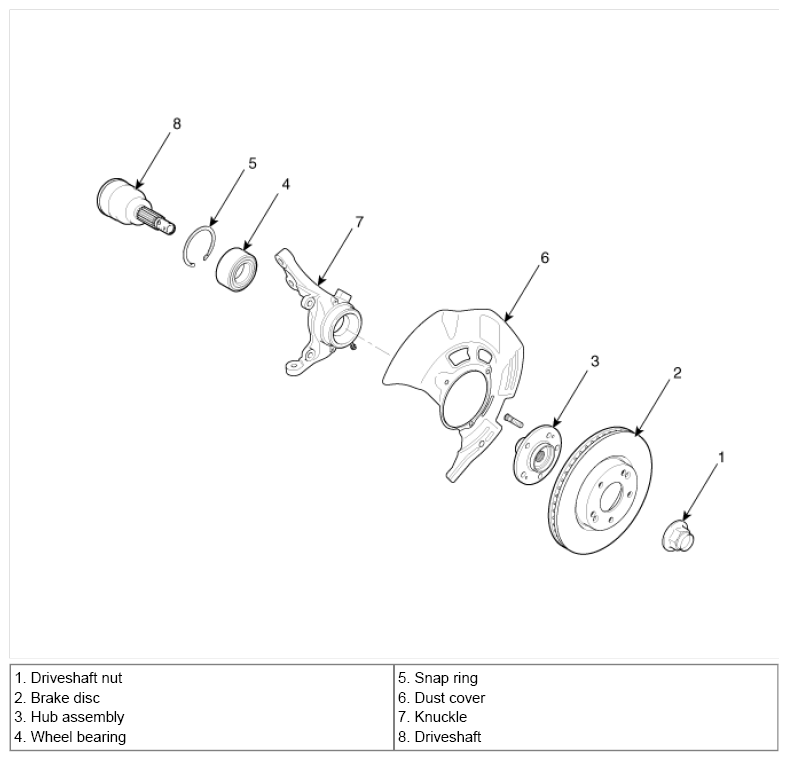

Fig 1: Front Axle Assembly Replacement Components With Torque Specifications

G07264349

Courtesy of HYUNDAI MOTOR CO.
