Components and Components Location: Components

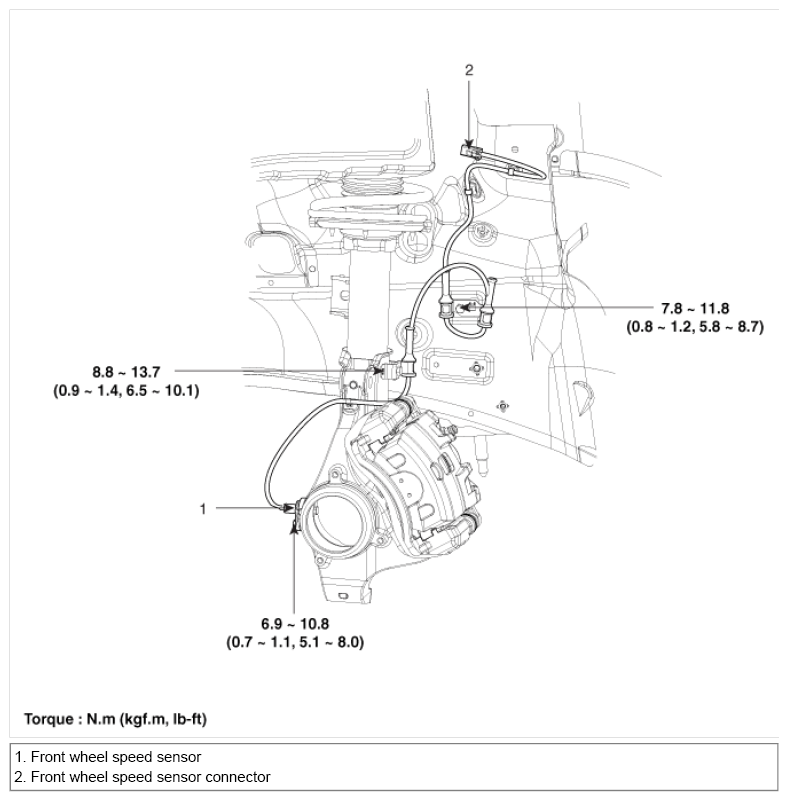

Fig 1: Identifying Front Wheel Speed Sensor Components

G07264650

Courtesy of HYUNDAI MOTOR CO.
