Repair Procedures: Inspection

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  2. Remove the crash pad lower panel.

    (Refer to the "CRASH PAD ")

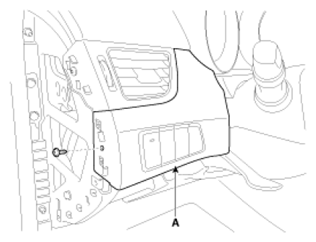

  3. Remove the crash pad side switch assembly (A).
    Fig 1: Identifying Crash Pad Side Switch Assembly
    G07264663Courtesy of HYUNDAI MOTOR CO.

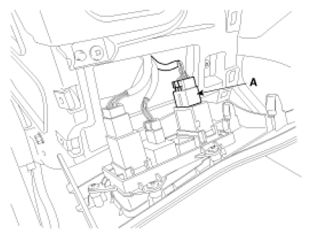

  4. Disconnect the ESC OFF switch connector (A).
    Fig 2: Identifying ESC OFF Switch Connector
    G07264664Courtesy of HYUNDAI MOTOR CO.
  5. Check the continuity between the switch terminals as the ESC OFF switch is engaged.
    Fig 3: ESC OFF Switch Connector Continuity Chart
    G07264665Courtesy of HYUNDAI MOTOR CO.
