Home >> Hyundai >> 2011 >> Elantra GLS, Automatic >> Repair and Diagnosis >> Brakes >> Traction Control >> Electronic Stability Control (ESC) System >> Components and Components Location >> Components

Components and Components Location: Components

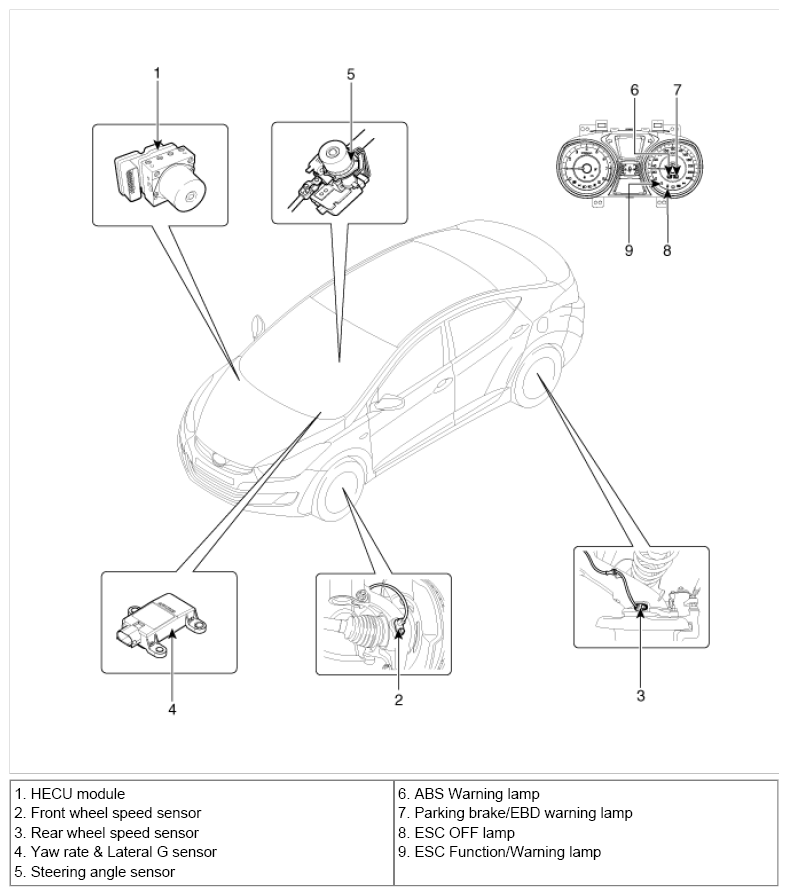

Fig 1: Identifying Electronic Stability Control System Components

G07264614

Courtesy of HYUNDAI MOTOR CO.
