Passenger Power Window Switch Inspection

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front door trim panel.

    (Refer to the FRONT DOOR )

  3. Disconnect the connector from the switch.

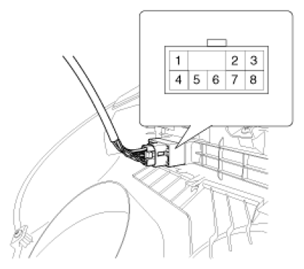

    Fig 1: Identifying Passenger Power Window Switch Connector Terminals
    G07256757Courtesy of HYUNDAI MOTOR CO.
  4. Check for continuity between the terminals in each switch position according to the table. If the continuity condition is not normal, replace the switch.
    Fig 2: Passenger Power Window Switch Continuity Chart
    G07256758Courtesy of HYUNDAI MOTOR CO.
