FOB Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "FOB KEY STATUS INFO".

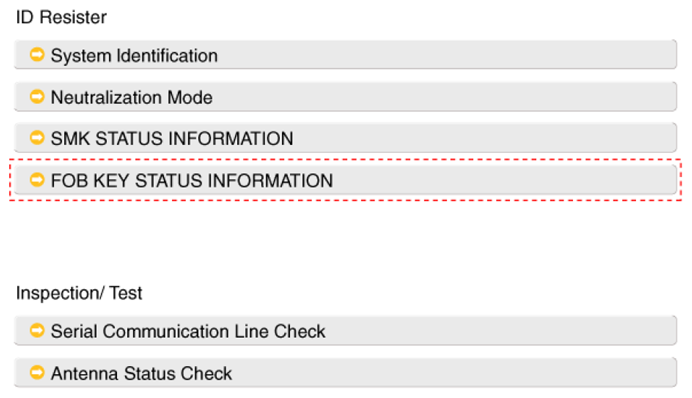

Fig 1: Scantool Display - ID Register
G07256503Courtesy of HYUNDAI MOTOR CO.

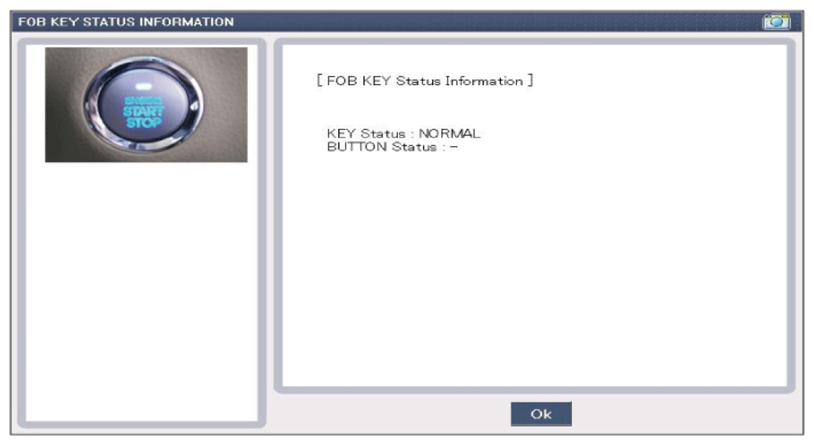

Fig 2: Scantool Display - FOR Key Status Information
G07256504Courtesy of HYUNDAI MOTOR CO.
