Monitor Scantool Data

  1. Connect GDS.
  2. IG "ON" and engine "OFF".
  3. Select "DTC Analysis" mode.
  4. After erase DTC, keep the vehicle condition within "the enable conditions" (Refer to "DTC DETECTING CONDITION " table).

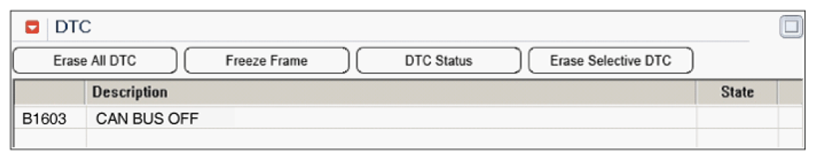

    Fig 1: Scantool Display - DTC
    G07257206Courtesy of HYUNDAI MOTOR CO.
  5. Is the same DTC occurred again?

    YES

    • Go to next procedure.

    No

    • Fault is intermittent caused by poor contact in BCM's and/or CLU's connector or was repaired and IPM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
