Trouble Diagnostics When Using GDS

Fig 1: Data Link Connector Location

Courtesy of HYUNDAI MOTOR CO.

The body control module can diagnose by using the GDS more quickly.
The BCM communicates with the GDS and then reads the input/output value and drives the actuator.
To diagnose the BCM function, select the menu of model and body control module.
To consult the present input/output value of BCM, "Current DATA". It provides information of BCM input/output conditions of power supply, turn signal/brake lamp, headlamp, door, locks, outside mirror, wiper, auto-light and transmitters etc.
1. BCM Service data

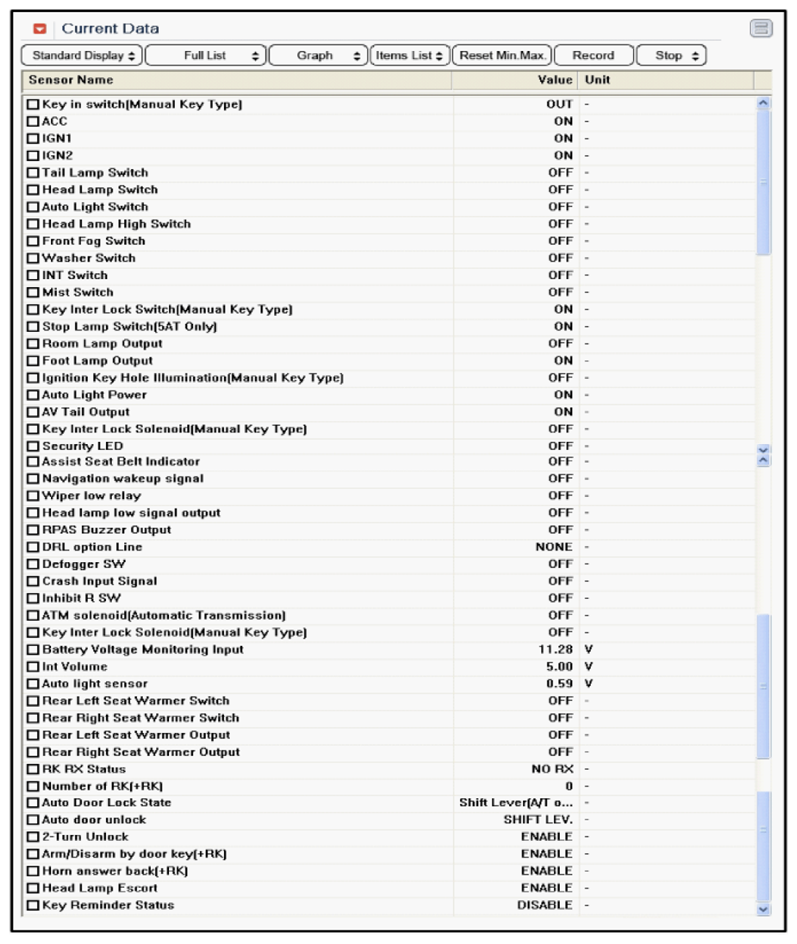

  Fig 2: Scantool Display - BCM Service Data
  Courtesy of HYUNDAI MOTOR CO.
2. CLU(Cluster) Service data

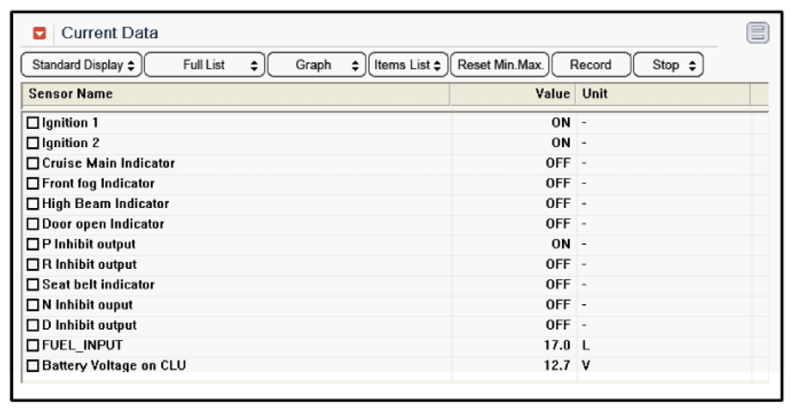

  Fig 3: Scantool Display - Current Data
  Courtesy of HYUNDAI MOTOR CO.
3. SJB(Smart junction box) Service data

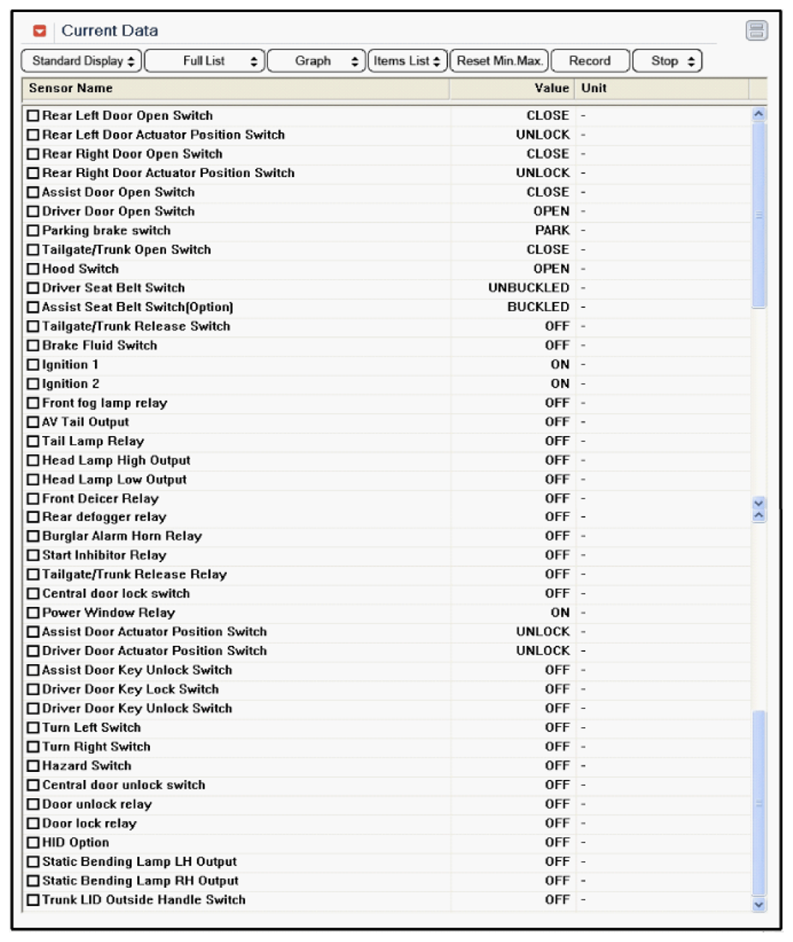

  Fig 4: Scantool Display - Current Data
  Courtesy of HYUNDAI MOTOR CO.
To perform compulsory operation on BCM input factors, select "ACTUATION TEST".

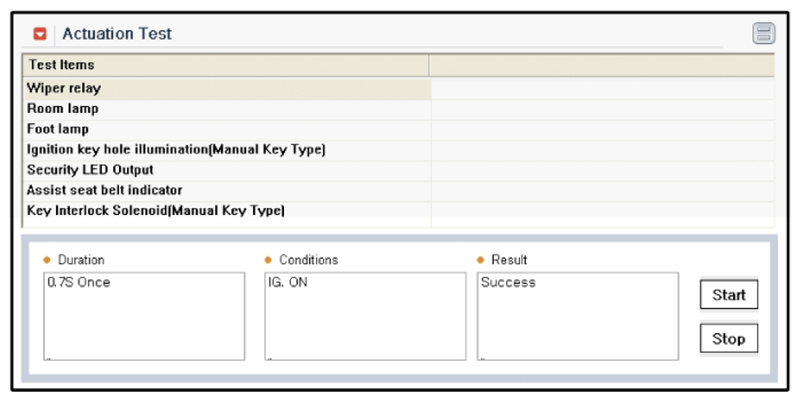

Fig 5: Scantool Display - ACTUATION TEST
Courtesy of HYUNDAI MOTOR CO.
