Repair procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the console.(Refer to the "CONSOLE ")
  3. Remove the audio and heater / air conditioner controller. (Refer to the "CRASH PAD ")
  4. Remove the lower panel and glove box.(Refer to the "CRASH PAD ")
  5. Remove the BCM unit(A) after disconnecting a connector and loosening 2 nuts.

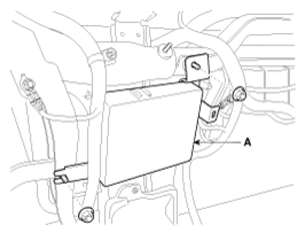

    Fig 1: BCM Unit
    G07256652Courtesy of HYUNDAI MOTOR CO.
  6. The installation is the reverse order of removal.
